DZYGA-O-13

Fiber-optic FPV — a tactical battlefield UAV designed for strike missions with manual targeting

System advantages

STABILIZATION MODE

MAINTAINING ITS FLIGHT PATH TOWARDS TARGET

2-3 MIN PREFLIGHT PREPARATION

OPERATES IN TEMPERATURES RANGING FROM -20°C TO +50°С

FULL EW RESISTANCE

GPS-DENIED MODE

TECHNICAL PARAMETERS

Copter dimensions

700 ± 20 mm / 750 ± 20 mm / 380 ± 20 mm

Payload

from 3000 g

Max takeoff weight

In combat gear - 10,600 g

Cruising speed

14 m/s

Endurance

at least 22 minutes

Combat range

from 15,000 m

Control

FPV glasses and/or a LED TV panel

Spool with fiber optic cable

at least 15,000 meters

Motor type

Electric, pulling

Power supply system

Li-Ion battery with a capacity of at least 25000 mAh

FIBER SPOOL OPTIONS

Fiber length

15 km

Weight

1600 g (1.6 kg)

Dimensions

125 mm / 340 mm

Fiber length

20 km

Weight

1900 g (1.9 kg)

Dimensions

125 mm / 340 mm

Fiber length

25 km

Weight

2400 g (2.0 kg)

Dimensions

125 mm / 340 mm

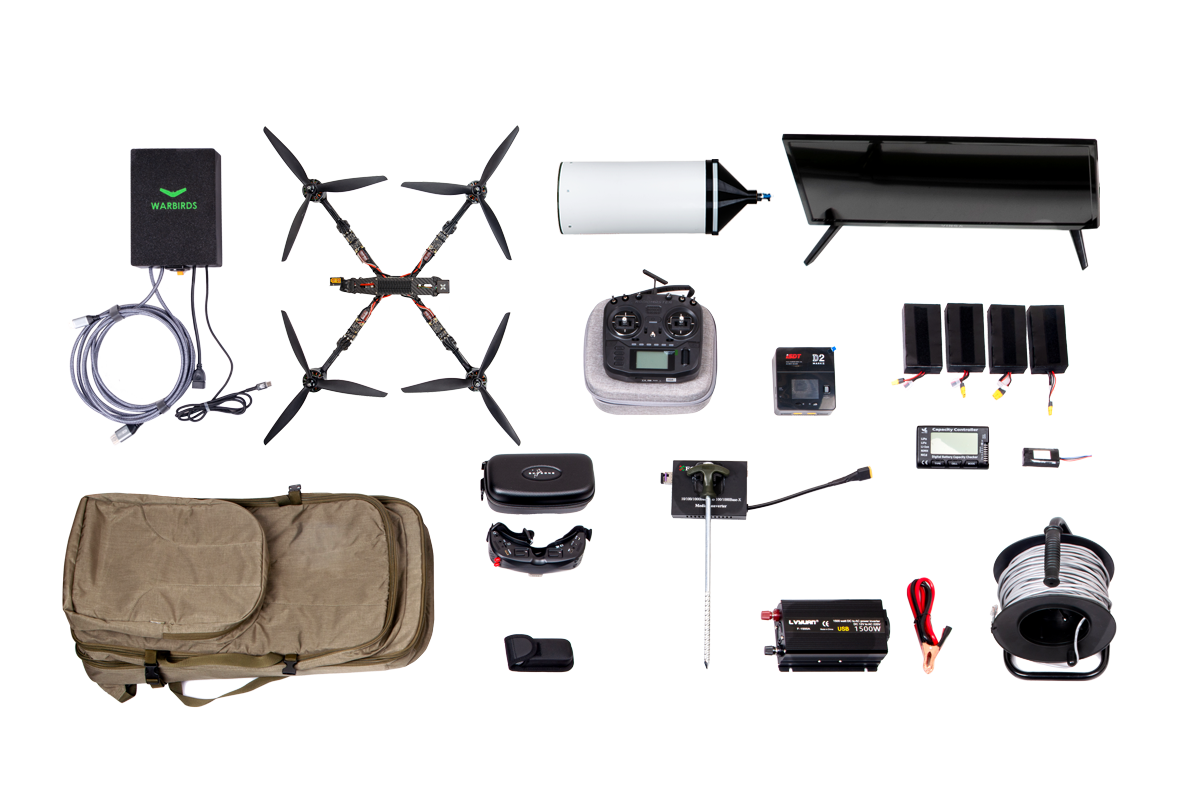

COMPLETE SET

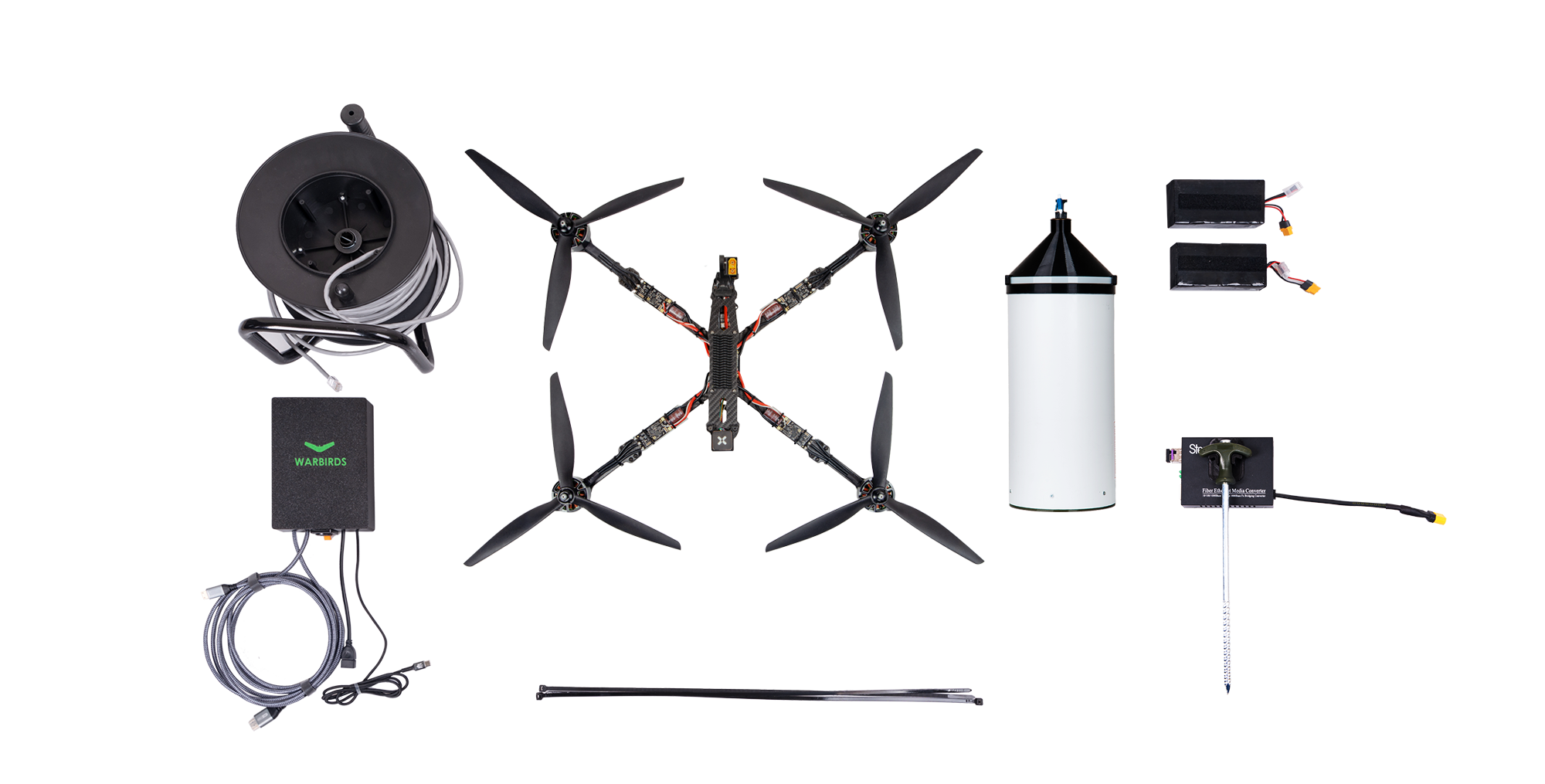

MINI SET

Find out more about
ordering the UAV

System configurations

Fiber optic spools

Fiber optic reels for DZYGA-O-13 are available in 15 km, 20 km, 25 km lengths, allowing you to choose the optimal ratio of range and payload.

Camera modules

Two types of cameras are available for the camera modules: analog and digital IP, each in day or night versions.

The IP camera transmits video in high resolution ( 2592 px * 1944 px, 30 frames per second) without signal delay. The analog camera provides basic shooting with a wide viewing angle and minimal power consumption.

The elements of the complex are stored in a special bag-backpack, which allows transportation by hand, by road, sea, rail or air.
