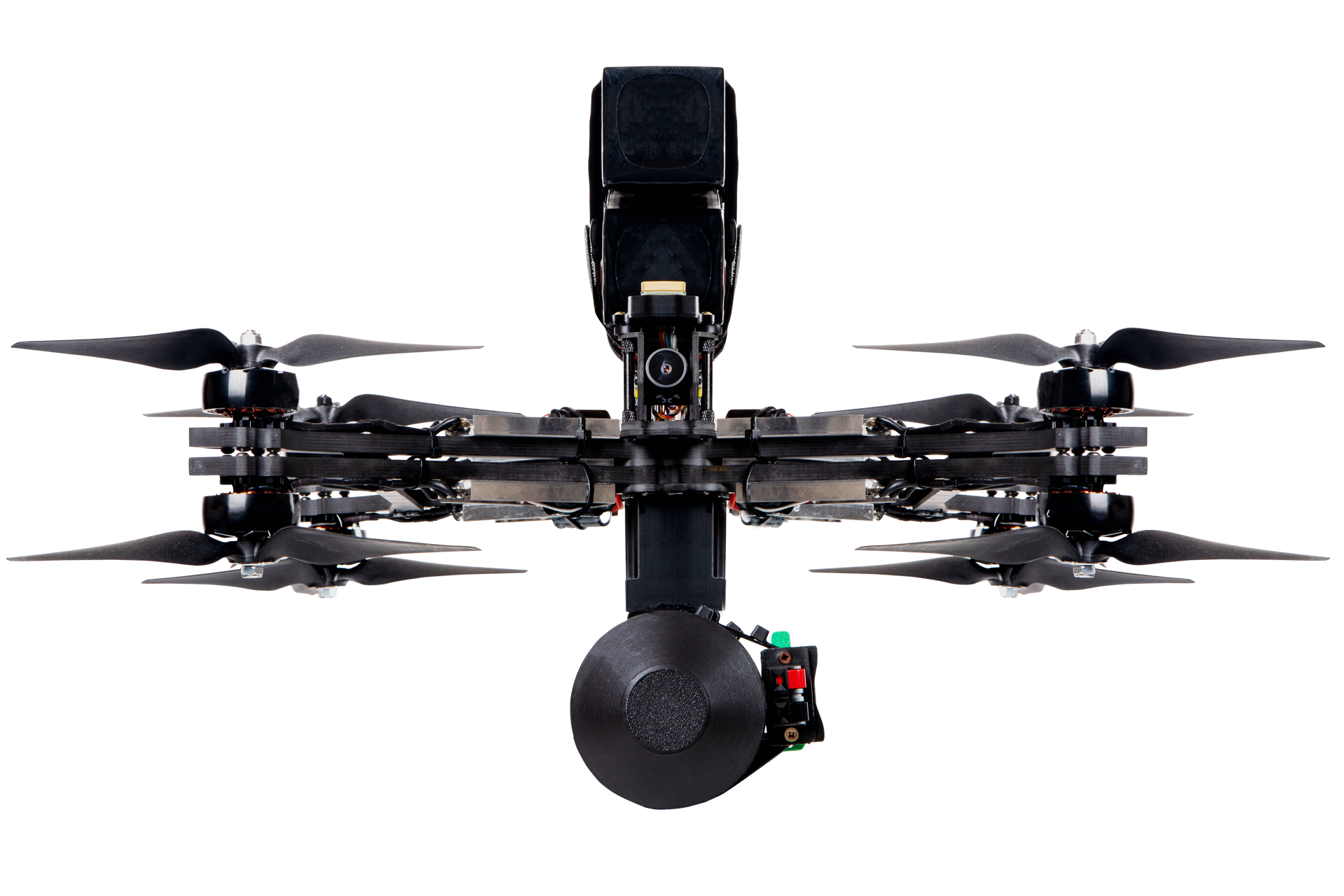

DZYGA-4x4

Tactical battlefield UAV FPV quadcopter designed for intercepting enemy reconnaissance UAVs

DZYGA-4x4

Tactical battlefield UAV FPV quadcopter designed for intercepting enemy reconnaissance UAVs

System advantages

STABILIZATION MODE
USE WITH VARIOUS GUIDANCE SYSTEMS
HIGH SPEED AND MANEUVERABILITY
FLIES IN SNOW, RAIN, FOG, FROST DOWN TO -25°С
HIGH RESISTANCE AGAINST GUNFIRE DAMAGE
GPS-DENIED MODE

TECHNICAL PARAMETERS

Copter dimensions
560 mm /560 mm / 150 mm
Payload
Up to 500 g
Max takeoff weight
In combat gear - 3800 ± 200 g
Cruising speed
15 m/s
Endurance
26 mins
Combat range
5000 m at a flight altitude of 300-3000 m
Control
FPV glasses and/or a LED TV panel
Communication with the operator
Control, frequency 720-920 MHz
Analog video, 1.2 GHz
Power of the control transmitter
Up to 2000 mW
Motor type
Electric, pulling
Power supply system
20,000 mAh lithium-ion battery
Expand

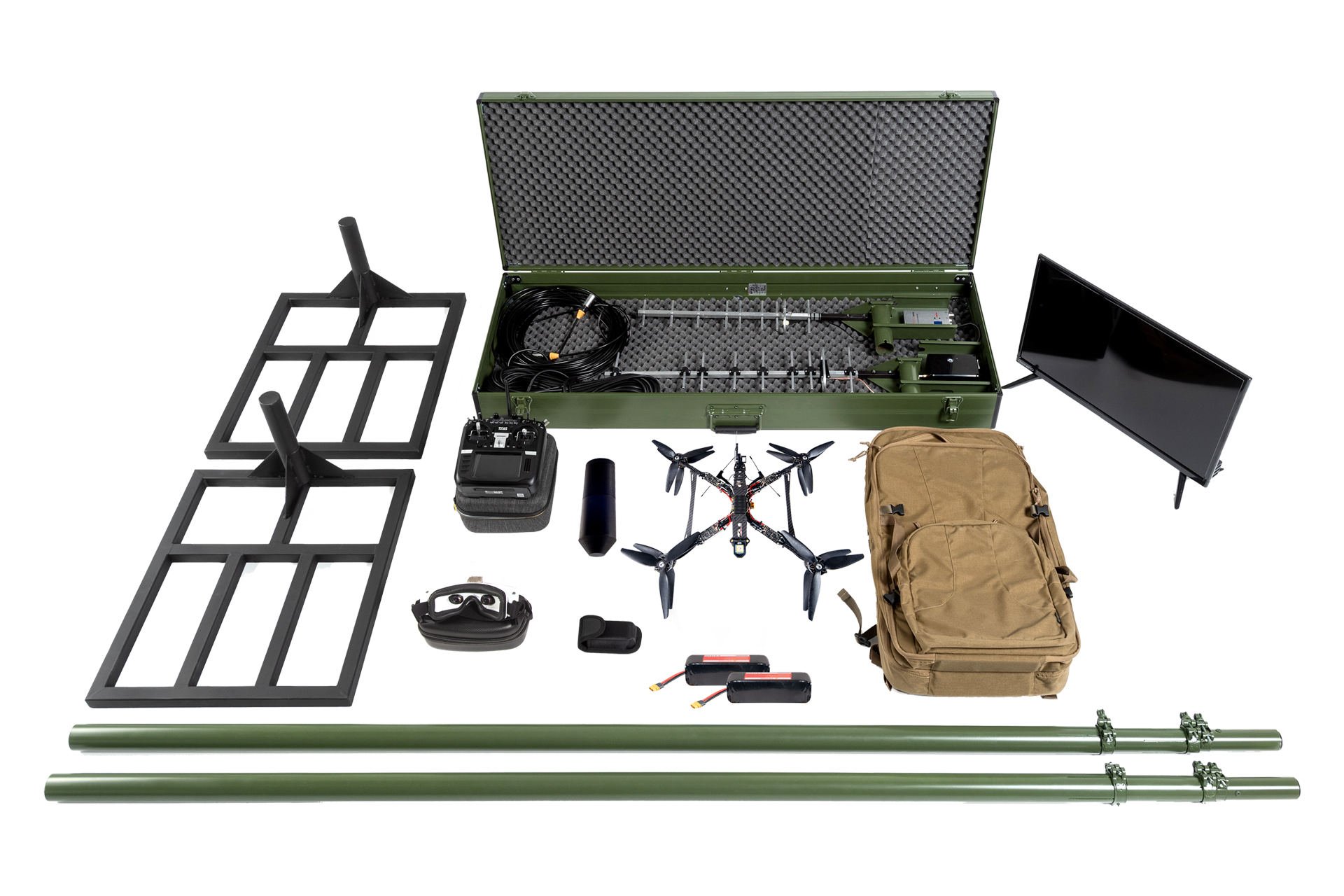

Complete set

Find out more about
ordering the UAV
Contact us

Training

GROUND CONTROL STATION

The ground control station includes remote video and control antennas mounted on poles up to 7.2 m in height. The video from the drone is additionally displayed on the LED TV panel.

TRANSPORTATION AND DEPLOYMENT

  • The crew consists of two operators
  • Minimum pre-flight training time – 10 minutes

The elements of the complex are stored in a special backpack and container (antenna), which provide manual transferring, transportation by road, rail or air.

Have questions about UAV?

Contact us
Thank you!
We will contact you shortly

1. UAV FPV quadcopter designed for intercepting enemy reconnaissance UAVs

Copter dimensions - 360 х 360 х 80 mm

2. Battery

20,000 mAh lithium-ion battery

3. FPV goggles

For video transmission and OSD display, with the ability to record to a MicroSD memory card.

4. FPV drone controller

Controller power supply: 2S battery, 2800 mAh

5. Video and telemetry antennas

Ccase dimensions 1015 x 390 x 120 mm, weight - 9.5 kg

6. “Conntroler” case (backpack)

Backpack dimensions 680 x 330 x 300 mm, weight - 8.7 kg

7. TV set

24'' television with a remote control, adapted video input, and specialized mounting bracket

8. Charger

Charger with cables; multitool; 8 mm open-end wrench; hex key

9. Mast stands (2pcs)

Dimensions - 500 x 600 x 276 mm, weight - 6 kg

10. Masts (2 pcs)

Height - 2.14-7.2 m, weight - 5.4 kg

1. UAV FPV quadcopter designed for intercepting enemy reconnaissance UAVs

Copter dimensions - 360 х 360 х 80 mm

2. Battery

20,000 mAh lithium-ion battery

3. FPV goggles

For video transmission and OSD display, with the ability to record to a MicroSD memory card.

4. FPV drone controller

Controller power supply: 2S battery, 2800 mAh

5. Video and telemetry antennas

Ccase dimensions 1015 x 390 x 120 mm, weight - 9.5 kg

6. “Conntroler” case (backpack)

Backpack dimensions 680 x 330 x 300 mm, weight - 8.7 kg

7. TV set

24'' television with a remote control, adapted video input, and specialized mounting bracket

8. Charger

Charger with cables; multitool; 8 mm open-end wrench; hex key

9. Mast stands (2pcs)

Dimensions - 500 x 600 x 276 mm, weight - 6 kg

10. Masts (2 pcs)

Height - 2.14-7.2 m, weight - 5.4 kg
More info
More info

7. Case K3 “Antennas”

Telemetry antenna, video antenna, video cable.
Case dimensions — 1235х500х170 mm, weight — 14,6 kg

6. TV set, PC

TV: diagonal - 24″, weight - 2.4 kg
PC: Acer Enduro Urban N3
* Tablet is an optional item

5. Mast stands (2 pcs)

Dimensions — 500х600х276 mm, weight — 6 kg

4. UAV Galka case (2 pcs)

Case dimentions — 1695х815х155 mm, weight— 18.6 kg

3. Case «Bungee cord»

Items included: Screwdriver, control canter, carbine, glue 88, spanner, lever, blades, hammer, multitool, knife, voltage converter, propeller, servo, adhesive tape, insulating tape, ties, bungee cord stand.
Case dimensions – 565х595х188 mm, weight — 12.7 kg

2. Case “Batteries”

Items included: Batteries, tester, GPS tracker, antenna, video adapter, charger, power and USB cables, cameras, memory card, laptop, etc.
Case dimensions - 565x595x168 mm, weight - 20.8 kg

11. Cellmeter (battery checker)

8. Telescopic mast (2 pcs)

Dimensions — 500х600х276 mm, weight — 6 kg

1. UAV GALKA (2 pcs)

Case dimentions — 1600х730х120 mm, weight — 2.4 kg
